Building my own recurve.

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    #91
    It is coming out nice!

    Comment


      #92
      Outstanding Job

      Comment


        #93
        Pictures....Must....have.....Pictures......

        Comment


          #94
          24 hours is up. Get to work on that bow so we can see it.

          Comment


            #95
            I'm enjoying the thread and your doing an outstanding job.

            Comment


              #96
              Awesome thread !!! Can't wait to see the BOW !!!!

              Comment


                #97
                Worked on bow today, eating supper now pics in a little bit.

                Comment


                  #98
                  I got to spend about half the day in the shop working on the bow! First I put the form, and stands in the hot box and stored it away under my work bench.
                  Click image for larger version

Name:	100_2302.jpg
Views:	1
Size:	58.1 KB
ID:	24208906
                  Then I replaced the tires and blade on my bandsaw. To get the tires on I had to heat them in some hot water. Its amazing how nice a new blade is!
                  Click image for larger version

Name:	100_2307.JPG
Views:	1
Size:	36.4 KB
ID:	24208908
                  Click image for larger version

Name:	100_2308.JPG
Views:	1
Size:	51.1 KB
ID:	24208909
                  Here it is this morning.
                  Click image for larger version

Name:	100_2301.JPG
Views:	1
Size:	42.8 KB
ID:	24208907
                  Lots of extra epoxy around the fades. I wonder what they look like under there?
                  Click image for larger version

Name:	100_2312.JPG
Views:	1
Size:	37.3 KB
ID:	24208910
                  Removing some of the extra epoxy that squished out.
                  Click image for larger version

Name:	100_2315.JPG
Views:	1
Size:	49.6 KB
ID:	24208911
                  Click image for larger version

Name:	100_2318.JPG
Views:	1
Size:	46.9 KB
ID:	24208912

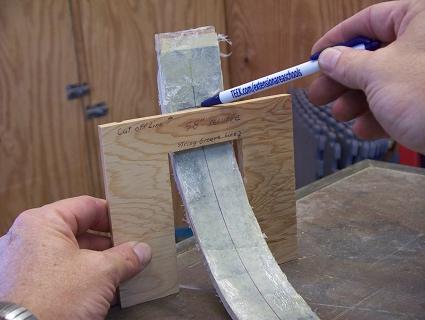

                  After I removed the extra epoxy to the point where the bow would sit flat on my workbench I marked the cut off and string groves.Click image for larger version

Name:	100_2320.JPG
Views:	1
Size:	36.2 KB
ID:	24208913
                  Binghams plans come on one large sheet of rather light weight paper, so I made patterns out of plexiglass. The plexiglass is strong enough to last for lots of uses and it is flexable enough to mark the limbs.
                  Click image for larger version

Name:	100_2324.JPG
Views:	1
Size:	37.8 KB
ID:	24208914
                  Click image for larger version

Name:	100_2325.JPG
Views:	1
Size:	37.8 KB
ID:	24208915

                  Comment


                    #99
                    Looking good!

                    Comment


                      Rough cutting shape of limbs, notice safety equipment? We only have one body so take care of it!
                      Click image for larger version

Name:	100_2326.JPG
Views:	1
Size:	46.3 KB
ID:	24208931
                      I used my drum and belt sander to get a closer sanding to the final shape.
                      Click image for larger version

Name:	100_2337.JPG
Views:	1
Size:	49.4 KB
ID:	24208932
                      I was wondering how my glue lines were going to look, this one is pretty good!
                      Click image for larger version

Name:	100_2339.JPG
Views:	1
Size:	28.2 KB
ID:	24208933
                      Here's a look down the length of the bow, still looking straight!
                      Click image for larger version

Name:	100_2340.JPG
Views:	1
Size:	43.5 KB
ID:	24208934
                      Filing in the rough string groves.
                      Click image for larger version

Name:	100_2341.JPG
Views:	1
Size:	38.9 KB
ID:	24208935
                      It needs some limb tip overlays! I'll use a thin cut of left over riser material and the cut off pieces of the maple parallel.
                      Click image for larger version

Name:	100_2342.JPG
Views:	1
Size:	39.3 KB
ID:	24208936 Click image for larger version

Name:	100_2344.JPG
Views:	1
Size:	53.9 KB
ID:	24208938
                      To get a good bond I roughed all the surfaces including the fiberglass limb.
                      Click image for larger version

Name:	100_2343.JPG
Views:	1
Size:	32.6 KB
ID:	24208937
                      And the last thing of the day was to epoxy the overlays on, clamp, and lamps set to heat and help cure epoxy.
                      Click image for larger version

Name:	100_2349.JPG
Views:	1
Size:	35.3 KB
ID:	24208939
                      Its going to be a few days before I can spend a lot of time on the bow but maybe I can sneak in an hour here or there! So, keep watching!

                      Comment


                        Lookin Good !!!

                        Comment


                          Wow!

                          Comment


                            The tip overlay after cured, ready to shape.
                            Click image for larger version

Name:	100_2354.JPG
Views:	1
Size:	97.7 KB
ID:	24210609
                            Click image for larger version

Name:	100_2369.JPG
Views:	1
Size:	101.9 KB
ID:	24210610
                            And here it is close to final shape.
                            Click image for larger version

Name:	100_2370.JPG
Views:	1
Size:	95.3 KB
ID:	24210611
                            I'm really pleased how my glue lines and riser fades are looking. from what I have read this was one of the areas that is hard to do really well?
                            Click image for larger version

Name:	100_2352.JPG
Views:	1
Size:	123.7 KB
ID:	24210612
                            Next thing I did was prep and glue the riser overlays. I preped these just like I did the tip over lays and laminations of the bow. I used some scrap and cut out some clamping blocks to match the curve of the riser so I could clamp things together to cure.
                            Click image for larger version

Name:	100_2360.JPG
Views:	1
Size:	235.5 KB
ID:	24210613
                            Plenty of epoxy oozing out so I'm pretty sure I've got enough on it!
                            Click image for larger version

Name:	100_2362.JPG
Views:	1
Size:	190.7 KB
ID:	24210614
                            And finally placed some lamps to get some heat on it to help cure the epoxy.
                            Click image for larger version

Name:	100_2365.JPG
Views:	1
Size:	193.0 KB
ID:	24210615
                            I actually brought to work with me today and finished shaping the other tip overlay and rough in the string groves. Might get to work on it a little tomm.? Seems like things are moving pretty fast, but I'm sure things will slow after I get the riser rough cut and start hand sanding and rasping to shape.
                            Thanks for checking it out!

                            Comment


                              Looking Good.

                              If you have another trad bow with a grip you like, it will sure help when forming the hangle.

                              Comment


                                Once ya get the rough shape penciled on it the extra wood cut away, 10-15 minutes on the spindle sander you'll be ready to check the brace on it.

                                Nice, there are a lot of handle shapes and grip shapes, have fun. it only gets better from here out.

                                Comment
