    6x8 Box Blind Build

    Wanted to share with TBH another blind build. As kids are getting older, we are needing more space. Have enjoyed the project, not completed yet, but planning to have it ready and installed in the field Labor Day weekend.

    A few notes from the build:
    - Utilized an old 4x6 blind steel frame, cut/spliced additional steel supports to increase the dimensions.
    - Utilized 2x3 lumber for slight weight savings. Window trim 8’ PT fence pickets, stripped in half
    - walls and roof are modular for easier transportation to the field. Walls are secured to base with bolts. Roof is framed to fit inside walls space.
    - Ordered several Deer View windows to be installed (pending delivery).
    - utilized the Smart Siding for walls, have been very happy with the value and quality during construction.
    - reinforced door with lumber framing to increase durability
    - Leg extensions to be added to increase height from 4’ to around 10’
    - Pending activities (most will be in field after transport): a few more shelves, carpet, paint, exterior corner trim, joint sealing, roof panels (galv sheet metal R-Panel), window install, flashing above windows, interior hardware (hooks, gun holders, acoustic foam panels on walls, etc)


    Starting point, old 4x6 frame stripped down
    Click image for larger version

Name:	IMG_6275_Original.jpg
Views:	1138
Size:	676.5 KB
ID:	26866657

    Cut and spliced new bracing for 6x8 dimension
    Click image for larger version

Name:	IMG_6590_Original.jpg
Views:	1217
Size:	676.7 KB
ID:	26866649

    Wall panel baseboards secured with bolts for modular transport to field
    Click image for larger version

Name:	IMG_7352_Original.jpg
Views:	1118
Size:	732.4 KB
ID:	26866651

    Click image for larger version

Name:	IMG_7379_Original.jpg
Views:	1126
Size:	735.4 KB
ID:	26866654

    Click image for larger version

Name:	IMG_7393_Original.jpg
Views:	1124
Size:	522.0 KB
ID:	26866650

    Click image for larger version

Name:	IMG_7407_Original.jpg
Views:	1133
Size:	672.3 KB
ID:	26866655

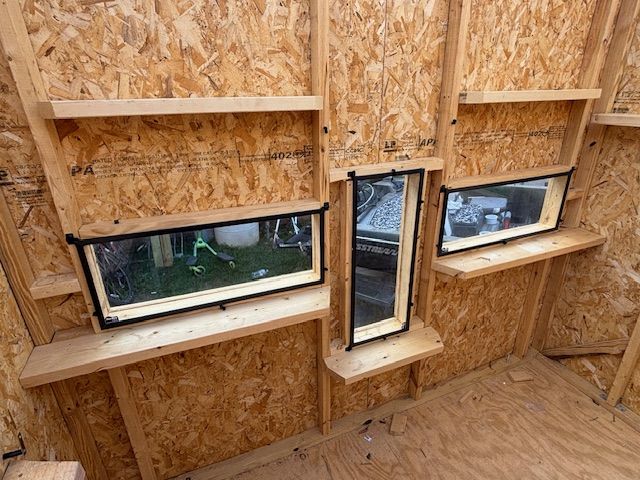

    Interior framing and shelves
    Click image for larger version

Name:	IMG_7421_Original.jpg
Views:	1118
Size:	489.0 KB
ID:	26866653

    Window trim and ventilation
    Click image for larger version

Name:	IMG_7415_Original.jpg
Views:	1129
Size:	417.6 KB
ID:	26866656
    Attached Files

    #2
    Awesome build man, looks great!

    Comment


      #3
      Picked up DeerView Windows this week!
      Click image for larger version

Name:	IMG_7593.jpg
Views:	917
Size:	87.9 KB
ID:	26873662
      Click image for larger version

Name:	IMG_7592.jpg
Views:	913
Size:	86.3 KB
ID:	26873663

      Comment


        #4
        Ill be following this one. Looks great!

        Comment


          #5
          Update on the blind.

          Finished corner trim pieces
          Click image for larger version

Name:	IMG_7614_Original.jpg
Views:	802
Size:	517.1 KB
ID:	26877290

          Built ladder
          Click image for larger version

Name:	IMG_7622_Original.jpg
Views:	801
Size:	426.6 KB
ID:	26877283


          Scored a $220 deck surface treatment 5 gal bucket at Home Depot remnant pile for $30.
          Click image for larger version

Name:	IMG_7647_Original.jpg
Views:	793
Size:	352.9 KB
ID:	26877291

          Click image for larger version

Name:	IMG_7641_Original.jpg
Views:	803
Size:	549.2 KB
ID:	26877282

          Click image for larger version

Name:	IMG_7642_Original.jpg
Views:	793
Size:	513.2 KB
ID:	26877285
          Click image for larger version

Name:	IMG_7644_Original.jpg
Views:	789
Size:	498.7 KB
ID:	26877286
          Click image for larger version

Name:	IMG_7651_Original.jpg
Views:	798
Size:	597.2 KB
ID:	26877289

          Found a couple old rugs on the curb down the street. Trimmed to fit
          Click image for larger version

Name:	IMG_7652_Original.jpg
Views:	797
Size:	551.7 KB
ID:	26877288


          Should be ready for Labor Day transport and install!



          Attached Files

          Comment


            #6
            That's a really good looking blind! What is the height of your front vs the back? I like the vents you have in there as well.

            Comment


              #7
              This is exactly what I hope to build this weekend with my brother. A nice 6x8 with a vertical bow window in the middle. But I was going to make one of the horizontal windows for full size adults and a slightly lower.

              Comment


                #8
                What thickness did you use for the flooring and what thickness for the side wall?

                I was thinking 5/8" for the floor and maybe some light weight 1/8" bead board for the walls. I was also thinking about using old scrap carpet and covering the floor (as you did) but also running it up the walls to help mitigate noise. Especially the bottom 4' where kids hang out and tap/bump into things!

                Comment


                  #9
                  Originally posted by jb5001 View Post
                  That's a really good looking blind! What is the height of your front vs the back? I like the vents you have in there as well.
                  Thanks. I believe it’s around 8”. I sketched it up being 12” drop over the 6’ but ended up less.

                  On the vents, wanted to make sure some airflow in when we aren’t there with windows open.

                  Comment


                    #10
                    Originally posted by gettin closer View Post
                    What thickness did you use for the flooring and what thickness for the side wall?

                    I was thinking 5/8" for the floor and maybe some light weight 1/8" bead board for the walls. I was also thinking about using old scrap carpet and covering the floor (as you did) but also running it up the walls to help mitigate noise. Especially the bottom 4' where kids hang out and tap/bump into things!
                    I went with 3/4”, there is a mid-frame support, seems plenty solid enough. I considered putting carpet on the walls as well, but opted not to. I’ve done it before, don’t see any reason it wouldn’t help. Especially with kids kicking and knocking things over, probably a good call!

                    I bought several egg crate acoustic foam pads I intend to put on the interior once it’s setup.

                    Comment


                      #11
                      Disassembled last night and ready for transport!

                      Click image for larger version

Name:	IMG_7829_Original.jpg
Views:	681
Size:	717.0 KB
ID:	26880349

                      Click image for larger version

Name:	IMG_7832_Original.jpg
Views:	676
Size:	782.0 KB
ID:	26880350

                      Comment


                        #12
                        Looks like you're ready for a fun work weekend.

                        we started a blind this weekend as well with ideas we kidnapped from you. Wishing we made it come apart in panels. We just got bigger and bigger and it is a monster now.

                        Comment


                          #13
                          Had a great, exhausting weekend getting the box blind, along with ground blind and ladder stand, relocating a couple feeders. Boys had a fun time on UTV and swimming in the pond while I worked. Deer were around the property all weekend, not very spooked by the activity, surprisingly.

                          Decided against installing the leg extensions. Risk vs reward I didn’t feel comfortable. Had to utilize the tractor to get final side in place. Very heavy!

                          Ready for season!














                          Last edited by holdin4horns; 09-04-2024, 02:39 PM.

                          Comment


                            #14

                            Comment


                              #15
                              Originally posted by gettin closer View Post
                              Looks like you're ready for a fun work weekend.

                              we started a blind this weekend as well with ideas we kidnapped from you. Wishing we made it come apart in panels. We just got bigger and bigger and it is a monster now.
                              Would love to see pics of your project! Good luck
