Drop away rest ?'s

[sambo73]

Ok, ive got the revolution and set it up. So when im setting it up at rest, should my arrow be lined up with berger holes? At full draw, should arrow be parallel to cable rod, assuming that cable rod is level? Could somebody post pictures of urs at rest and full draw? Thanks

[Puggy625]

At rest it will actually be angled down just slightly. At full draw, it should be level from the nock point. That may or may not be level with the berger hole, depending on where the nocking point is located. Mine is just slightly above center of the hole at full draw.

Edit: Follow the directions TO THE LETTER when setting it up. Don't pay any attention to anything else and it should be pretty close to shooting bulletholes through paper if it's done correctly. If not done correctly, it won't be pretty. lol

[sambo73]

It was used, no instructions. I havent paper tuned it yet. Gotta bulid a hootus to hold my paper. My d loop is where it was when i got bow. It was tuned and set up with a smackdown fc rest. Like a dummy i took it off and put wb on. Sold smackdown, should have kept it. Tryin a drop away for first time in a long time. Can anybody post up some pix?

[sambo73]

Ttt

[red]

At full draw, or rest in the up position, Arrow across the berger hole for a lot of bows. Some like Hoyt I think like them on the top half or right on top of the berger hole. But those are just a starting point. From there, fine tune the rest up, down, left or right until you have it shooting good holes in paper

[sambo73]

Thanks

[Puggy625]

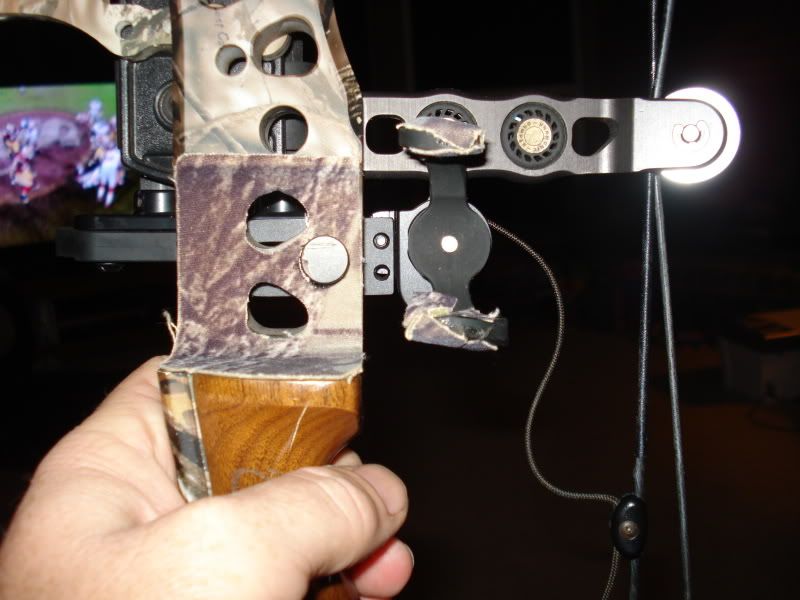

Sorry about the bad pics but here goes. Here is how much slack I have in the pull cord.

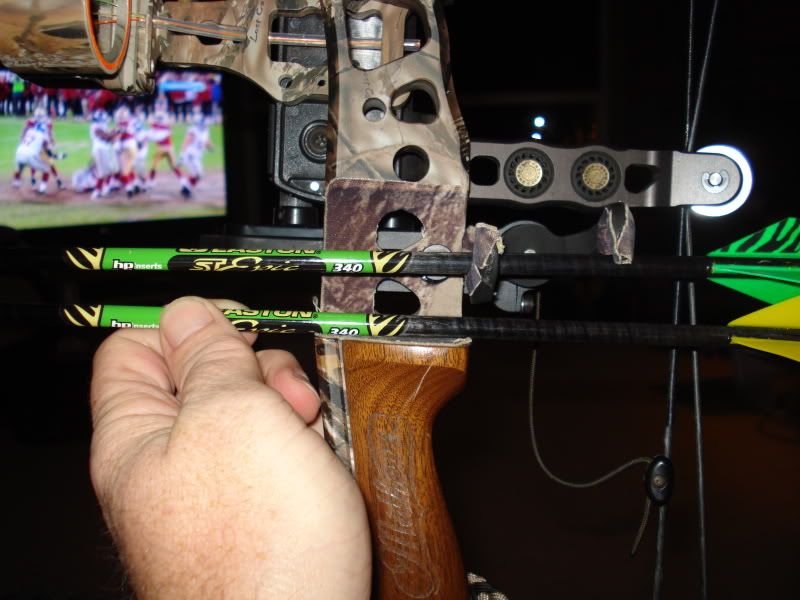

Nock an arrow and lock the rest. Next place an arrow flat on the riser shelf like below.

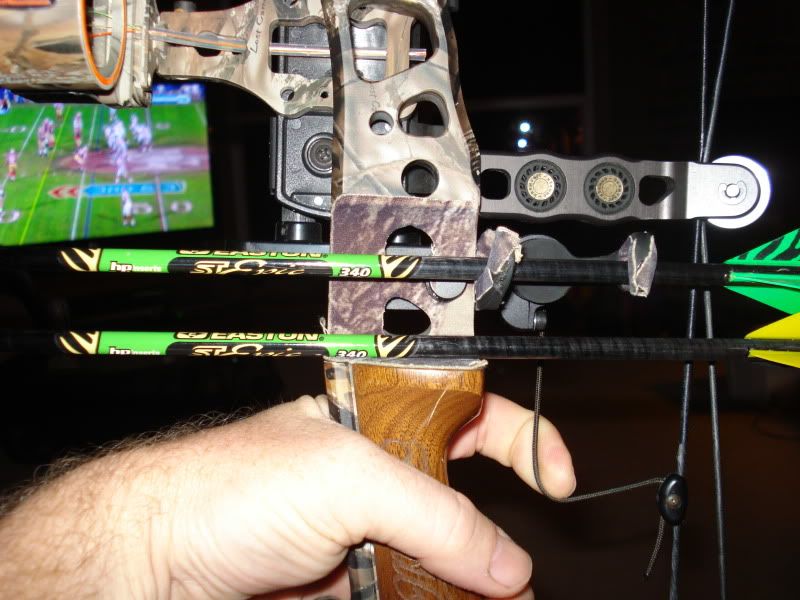

The nocked arrow should be angling down towards the tip of the arrow on the shelf. Next, pull the cord to make the rest rise up to the final position as below.



Both arrows should be parallel to each other at this point. If not, adjust the rest up/down to get them there. Next, as best you can, place the extra arrow against the side of the riser and look down both shafts from behind the string. Move the rest left/right to get them parallel again. Can't seem to get a good picture of this, sorry. The pull cord should be positioned about 3" below the arrow and should bring the rest to the final "up" position just before the cams break over. Hope this helps, call if you need anything else.

[super_dave]

Sammy, puggy's post is dead on! Set it up like that( which is close to whatcha got) and we will shoot it Wednesday before awanas.

[sambo73]

Thanks, got it pretty close.
