Cultipacker Rebuild

[wellingtontx]

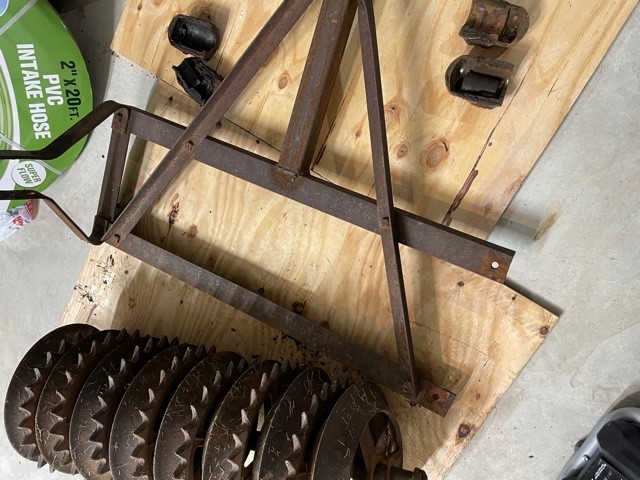

So picked up a a four foot cultipacker from a TBH member to pull behind an ATV. Was a nice find and as always, a great TBH member to deal with - thanks Bret

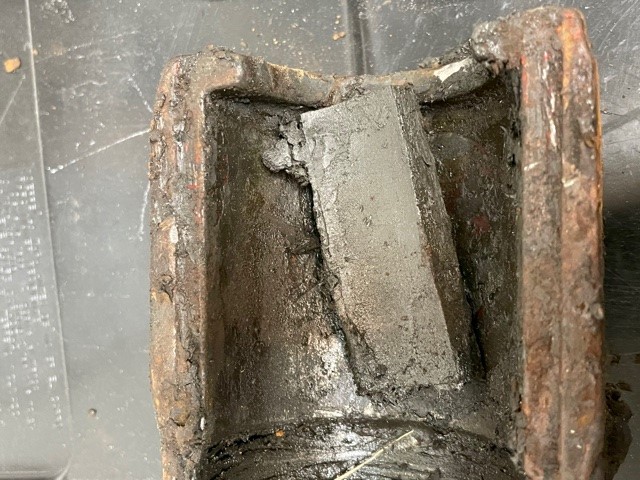

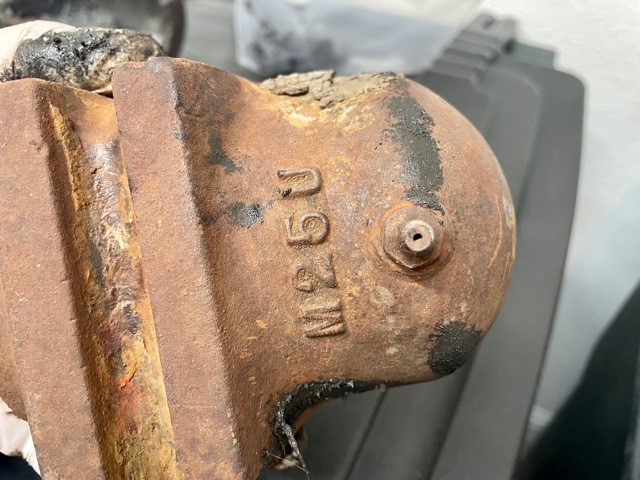

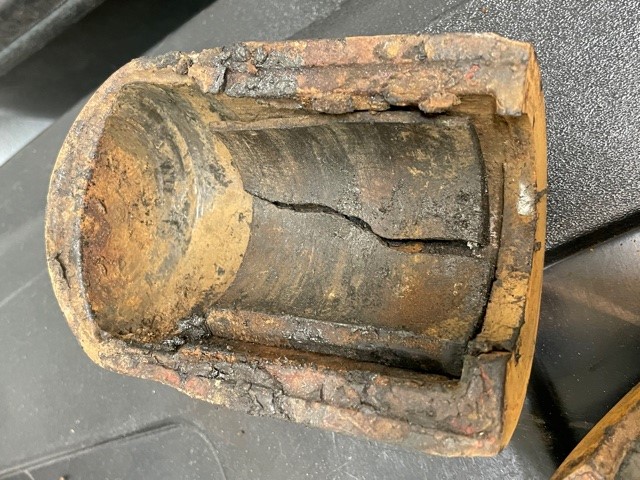

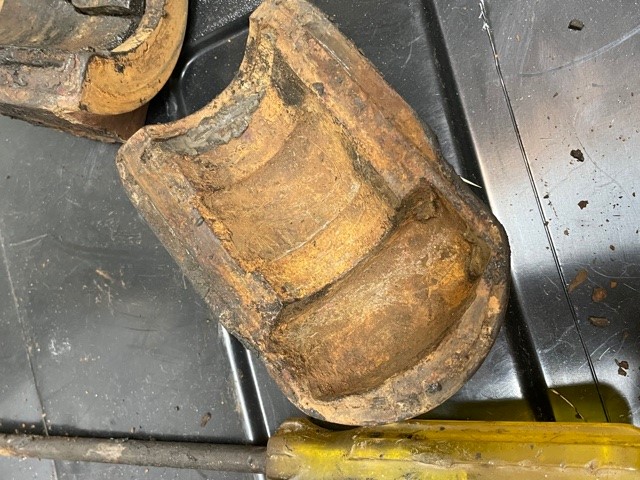

When purchased I anticipated that I would be changing the bearings. However, when I got it apart I realized that the bearings were wood bearings. Never seen that before. After some internet research, found that they were originally maple bearings that they would soak in Lin Seed Oil. The bearing holders were worn and oblong so they really were not usable.
















Since the option to replace the wood bearings was not realistic (which I did find a maker on the internet) decided to go a different route, I figured I would fix forever.

So I decided to get some new 3/8 inch steel places made that would hold modern day bearings.

Also found a broken wheel, so ordered a replacement.

The shaft was in bad shape since the old wood bearings were long gone.

[wellingtontx]

Then to the remake.

Cleaned the drive shaft up and replaced the broken wheel.

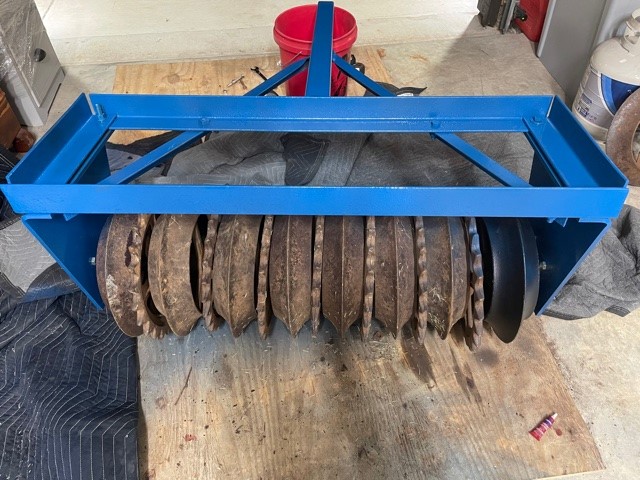

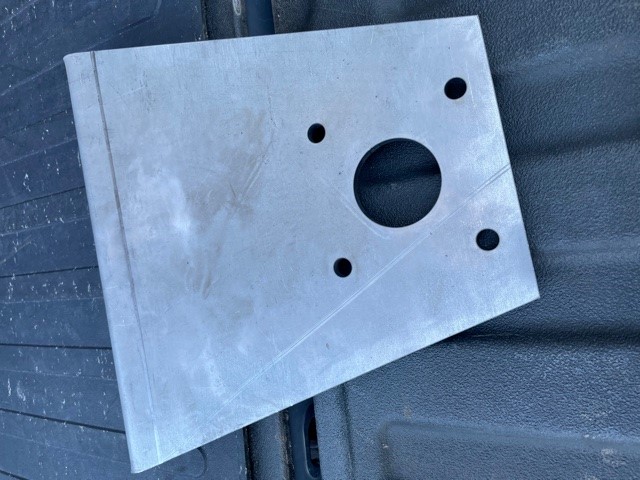

Got the new ends back from the shop. First install realized my drive shaft was a little short for the new design so had to turn the ends around. I anticipated that this might be the case, so no problem - after a couple of new drill bits and a lot of muscle. Add a couple of trips to Tractor Supply for new grade 8 bolts.

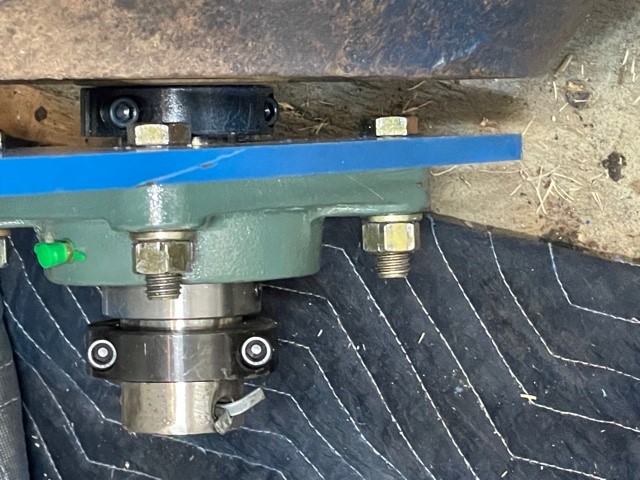

Ordered some collar shafts to keep the wheel shaft from moving from side-to-side off of Amazon.

End bearings off of Amazon as well.

[Kmart49]

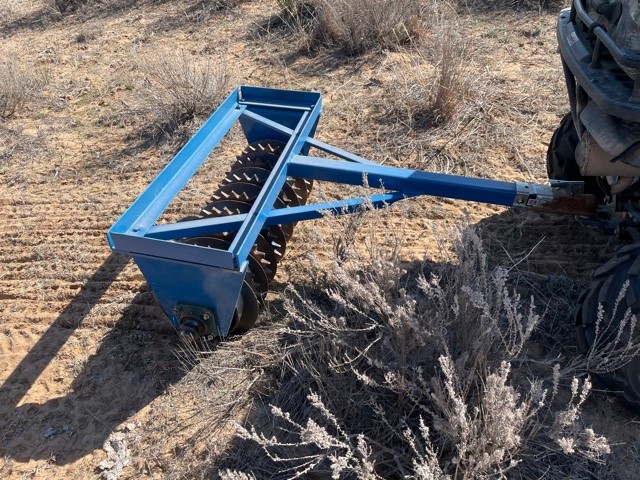

That looks good and should last forever!

[wellingtontx]

Thanks

[DZM]

Great looking rebuild

[Sethmac]

Great job!
