Vertical Offset Smoker Build

[Ramball36]

This is my first vertical offset. Firebox is 24"x24"x18" and smoke chamber is 24"x24"x36". It will have 5 cooking racks and is made out of 1/4" plate. Gonna be heavy!

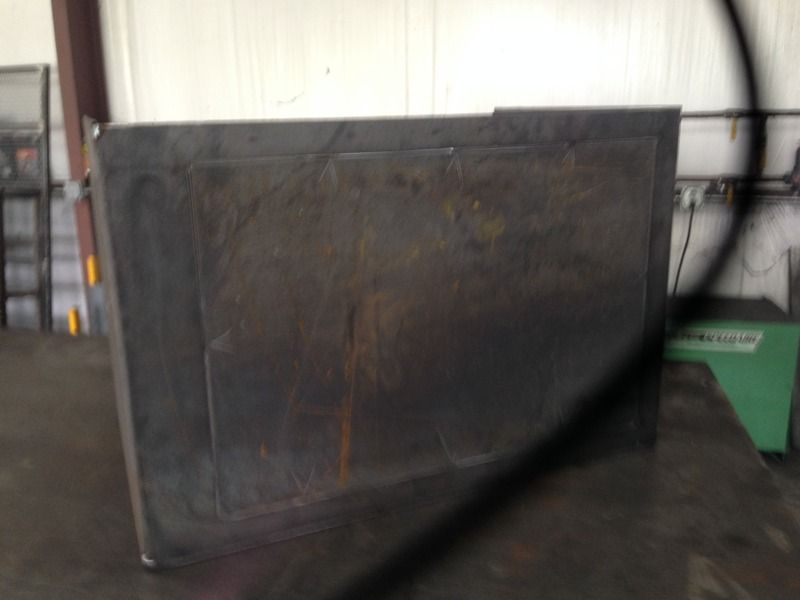

I am double flanging the door on the smoke chamber. Lost a little cooking area but it ought to seal nicely.



The door is tack welded to it's opening in 5 spots, makes lining it up for hinges WAY easier

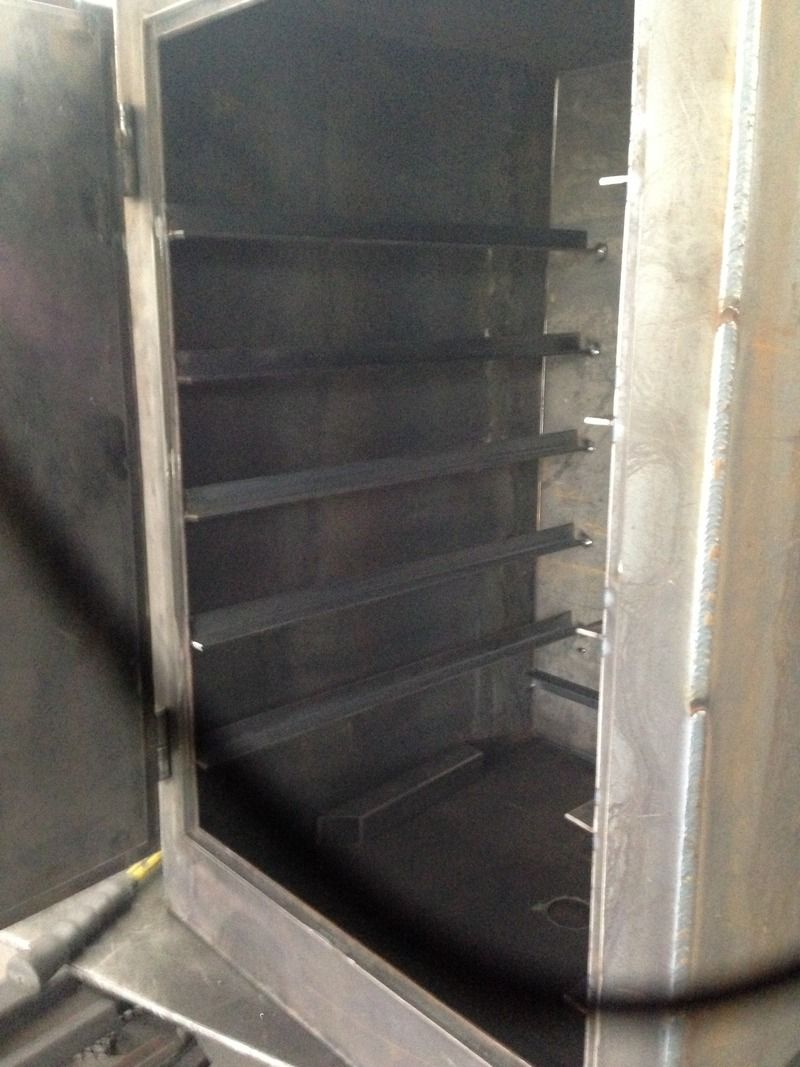

5 rack slides in as well as the slide for the tubing plates. About to button up the back after lunch

[Stan R]

Looks good so far.

[Ramball36]

Firebox almost done

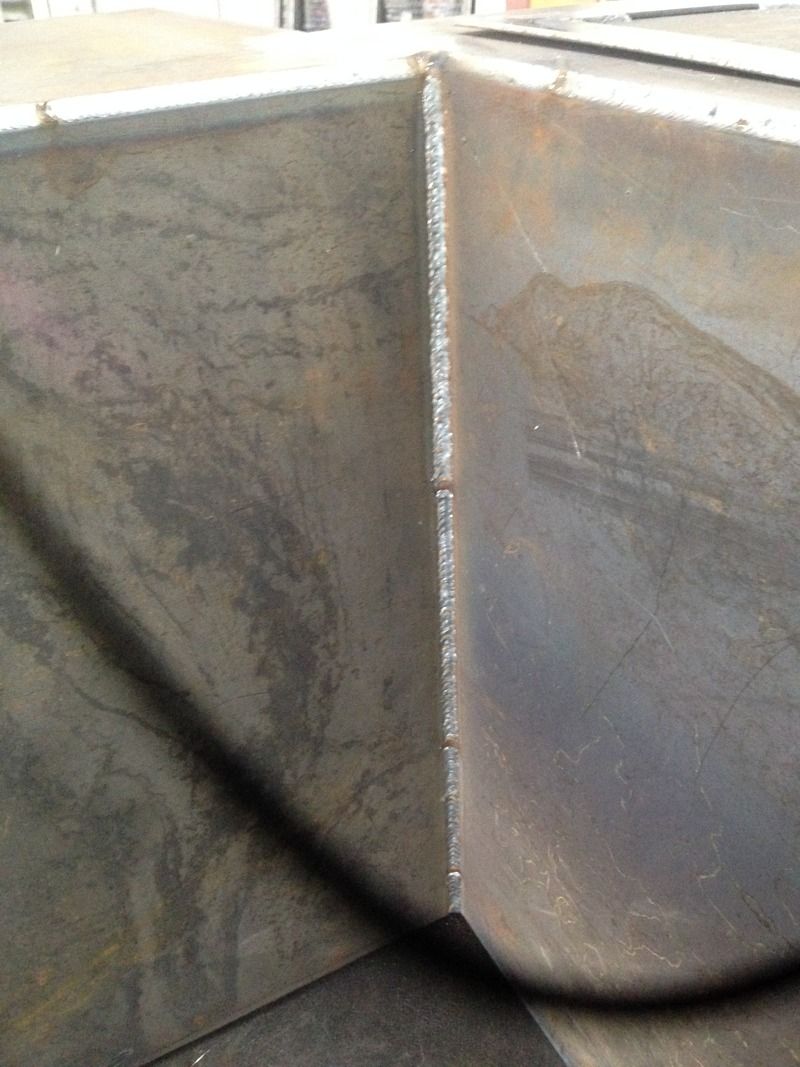

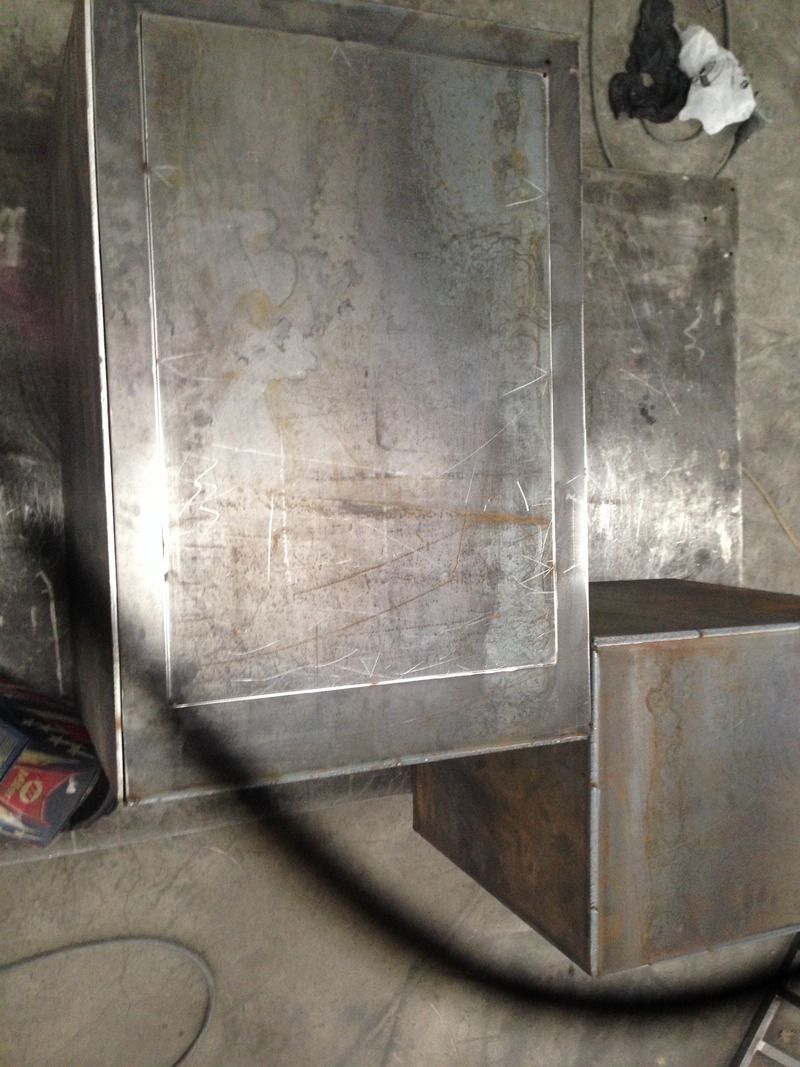

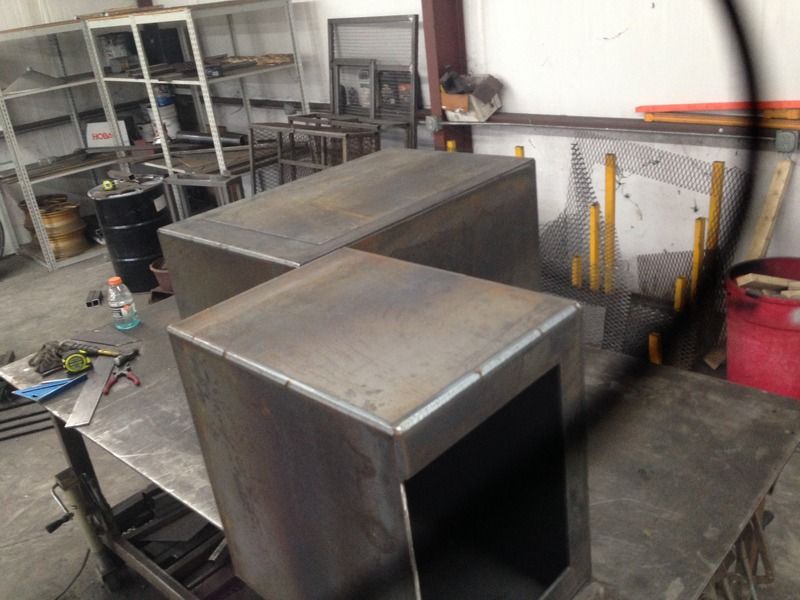

Box is all welded up, did a quick mockup of how it's gonna fit together.

[Smart]

Very nice! I like where this is going..

[Guerrero88]

Following. Been wanting to build one for a long time awesome start

[Graysonhogs]

looking good

[Ramball36]

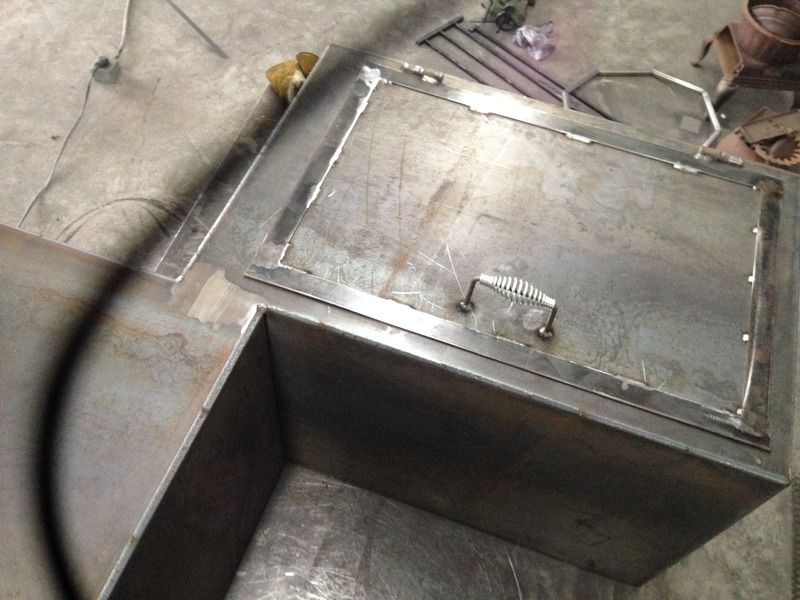

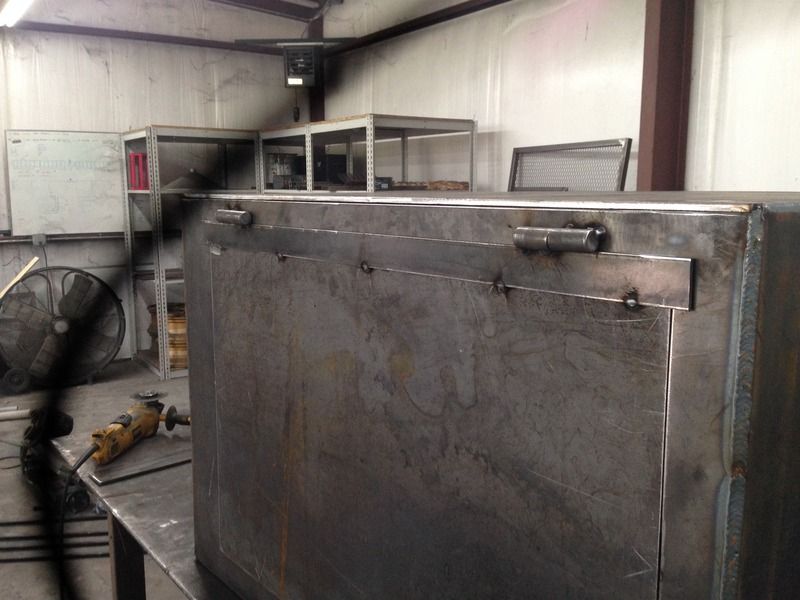

Hinges and flat strap on the door

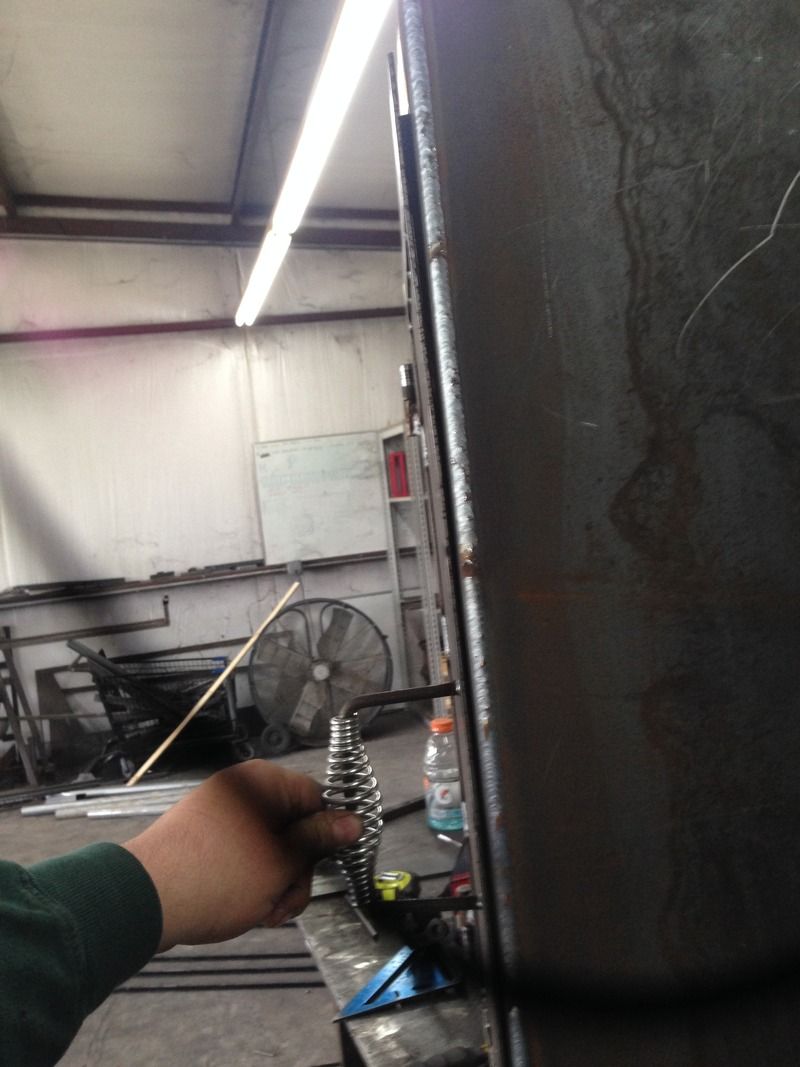

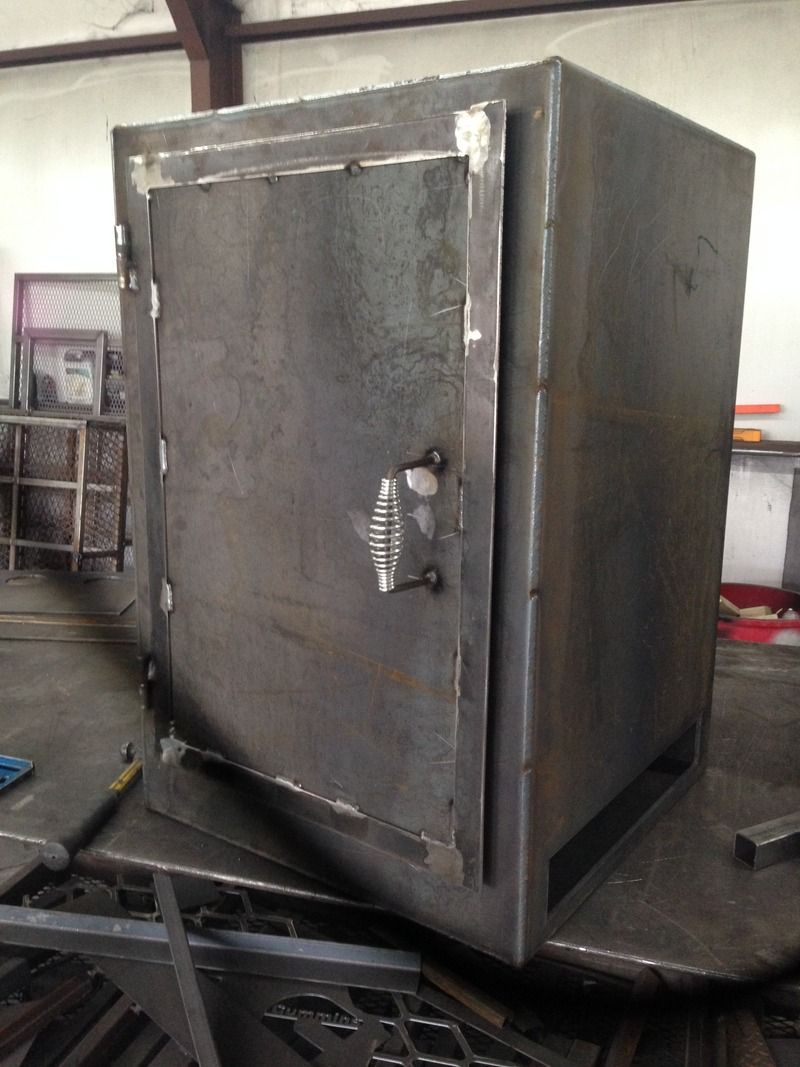

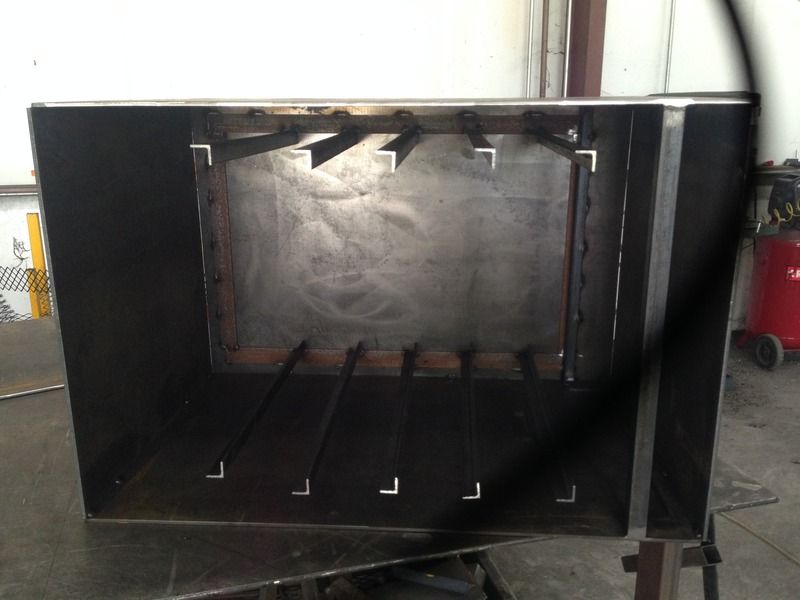

Got the rack slides tacked in on the back, I won't weld them up until we've got racks and can confirm the meat ain't gonna slide off the side! Also got the spring handle on.





The door is trying to bow on the top and bottom on me, but I got somethin for his azz

[Guerrero88]

That's really nice bro

[pblaetz]

Really nice work!

[Ramball36]

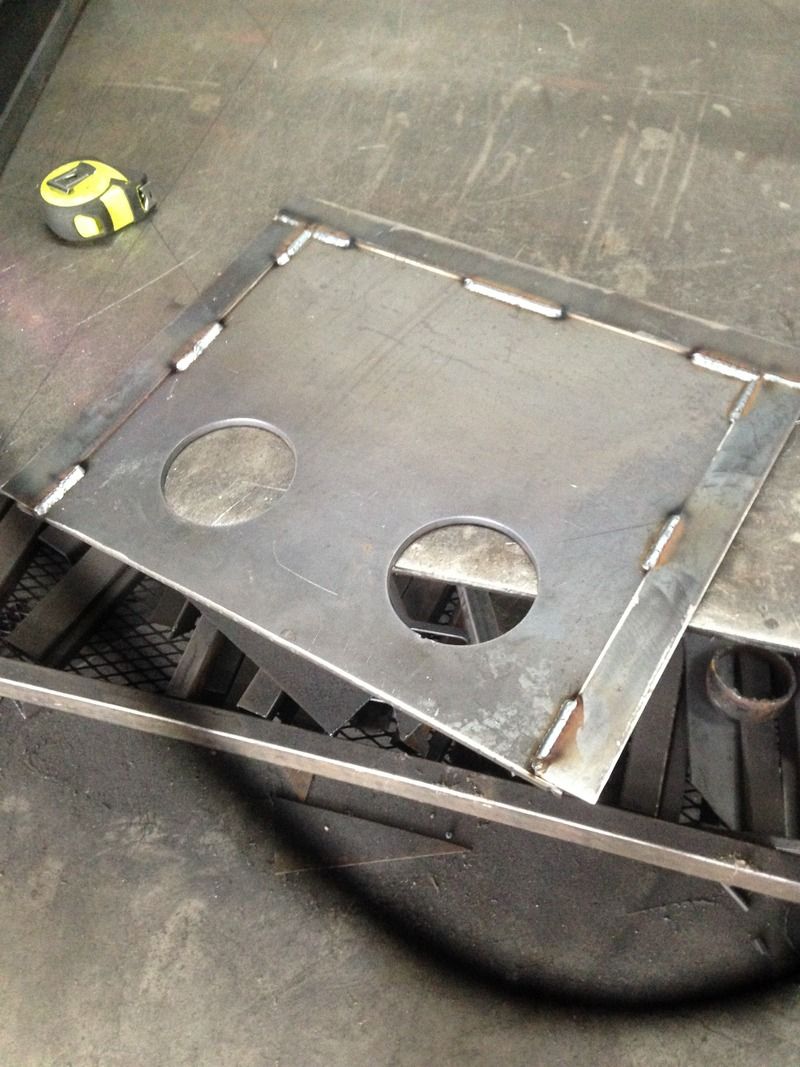

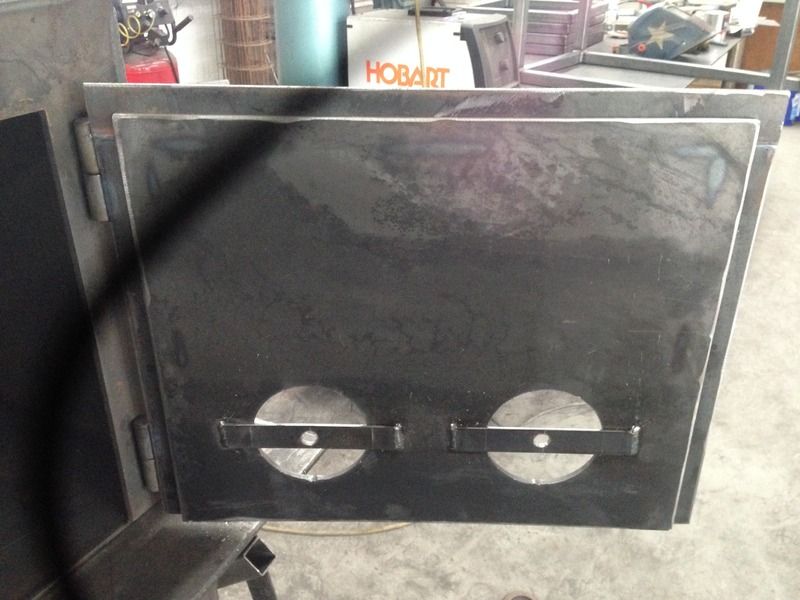

Flat strap and the strap for the dampers on the firebox door

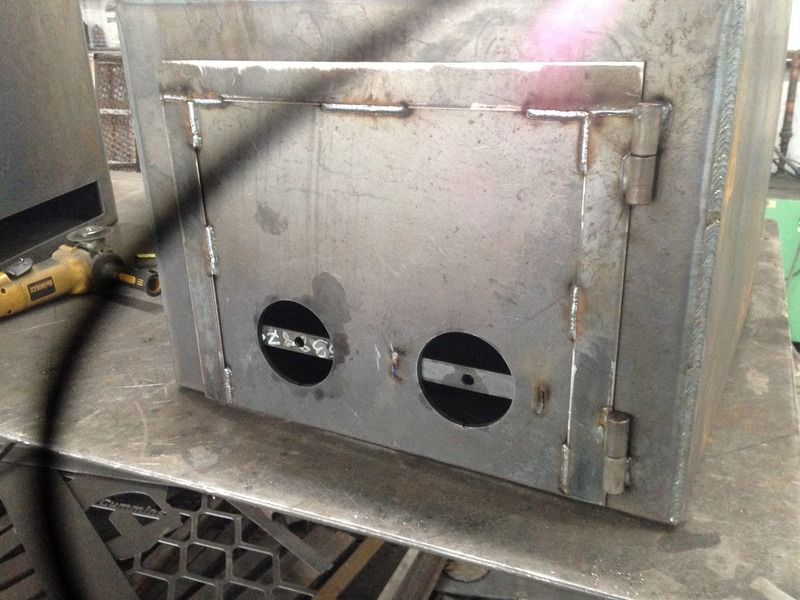

Lined em up and stuck em together

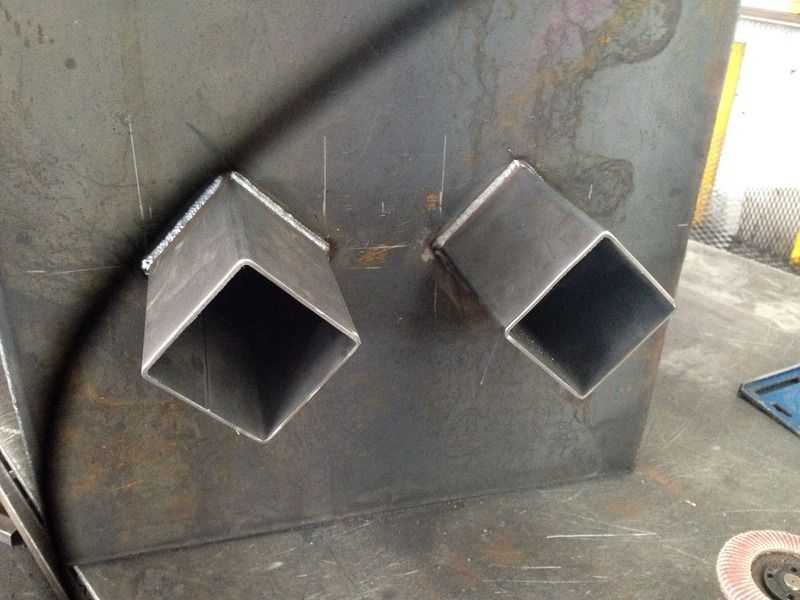

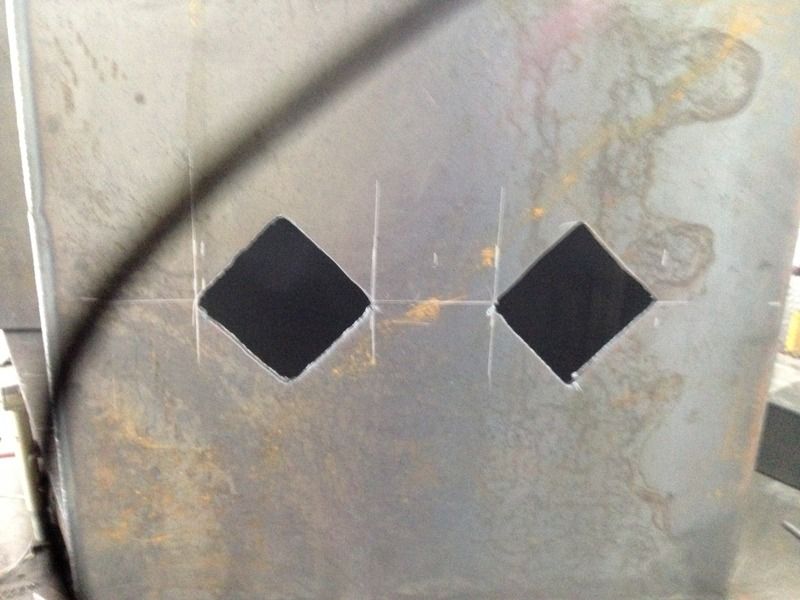

Drew up and cut the holes for the exhaust. Going with a little more exhaust and intake than what the formula called for in case he wants to run it hot.

[Texas Grown]

Nice work Hand! Hard wire I presume?

[Ramball36]

Yes all mig with 75/25

[Bjankowski]

Good job; awesome welds.

[savin yours]

Cutting with plasma?

[Ramball36]

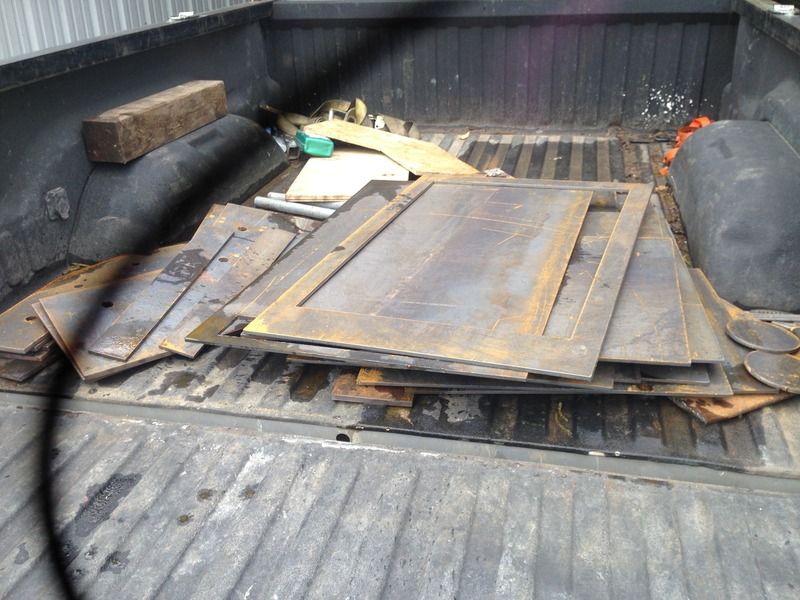

Yes plasma, the exhaust holes were by hand everything else was cnc
