    DIY RV Fixer Up

    Well going back out of town to work I've decided that I WILL NOT throw $400 a week to a motel/hotel. I've been looking around and found a RV on the property of the 2 ladies that I do some work around their place for hunting privileges. I ask them about the RV and they tell me that it's been sitting for 1 1/2 years, but I'm welcome to go look.

    I went and looked at the RV......turns out its a 1991 Layton 3010DLX..... I asked the ladies to make me a price for the RV and they called that night with a $2000 price. I reluctantly agreed and prayed to God that to fix up the RV wouldn't be that expensive.

    Went and picked up the RV today and brought it to my house. I fixed some small things first such as adding a new battery, new battery box, new propane selector valve at tanks, and added a new 7 way plug to fit my Dodge.

    Began working on things that I thought I'd have to replace such as the A/C, central heat, and the water heater. These were going to be my most expensive fixes. Luckily the A/C was full of dirt dobbers, but after working on it for a hour.....IT WORKS AND BLOWS VERY COLD!!! it's also pulling the proper amps so the motor and compressor is in great condition.

    Next was to begin work on the central heater. Removed it from the RV totally and begin cleaning. Cleaned out all dirt dobbers, blower tubes, jets, and housing. Reinstalled in the RV and guess what.....IT WORKS!!

    Click image for larger version

Name:	ImageUploadedByTapatalk 21361240942.084265.jpg
Views:	1
Size:	76.9 KB
ID:	24950802

    Now I move to the water heater.....started out with NO HOT WATER whatsoever.

    Click image for larger version

Name:	ImageUploadedByTapatalk 21361240993.743749.jpg
Views:	1
Size:	66.7 KB
ID:	24950803

    So I began removing the fuel valve and found that it was broken, burnt, and not working.

    Click image for larger version

Name:	ImageUploadedByTapatalk 21361241039.464208.jpg
Views:	1
Size:	68.4 KB
ID:	24950804
    Click image for larger version

Name:	ImageUploadedByTapatalk 21361241057.395050.jpg
Views:	1
Size:	73.4 KB
ID:	24950805

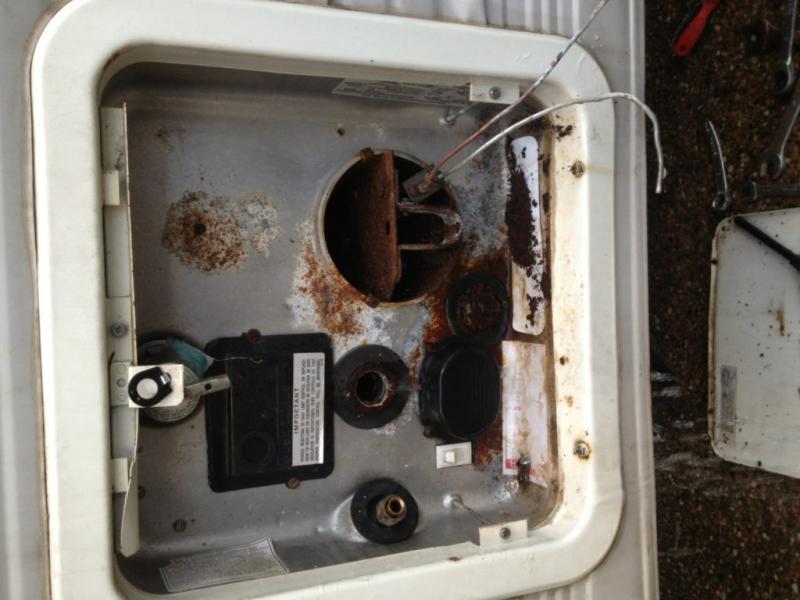

    So I began removing EVERYTHING to check it all out......This is what I ended up looking at close to quitting time:

    Click image for larger version

Name:	ImageUploadedByTapatalk 21361241103.211727.jpg
Views:	1
Size:	56.9 KB
ID:	24950810

    Tomorrow I will replace the old fuel valve with this rebuilt valve:

    Click image for larger version

Name:	ImageUploadedByTapatalk 21361241164.637871.jpg
Views:	1
Size:	59.9 KB
ID:	24950811

    Tomorrow I will also reseal the entire roof and corners, change the tail lights, fix all marker lights, repack the bearings, check and fix all interior lights and covers, and fix the oven. Top burners work, but I have to clean and fix oven.

    Wednesday I will be buying 4 new tires and checking OR changing out brakes.
    Last edited by bowsticker; 02-18-2013, 09:06 PM.

    #2
    Can a mod move this to the DIY section please?

    Comment


      #3
      lots of work, but get'n there big guy!

      Comment


        #4
        Sounds like you should open a repair shop

        Comment


          #5
          Good luck with the repairs. Let's see the whole rig. Excited to see what God is doing in your life.

          Comment


            #6
            Lets have pic's of this rig!!!

            Comment


              #7
              Sounds like you're pretty handy with that stuff. Good luck on the rest of it.

              Comment


                #8
                Originally posted by gargetter View Post
                Lets have pic's of this rig!!!
                I should've taken pics today, but I was pretty busy and it was raining most of the day so I was inside fixing during rain and outside when it would stop.

                I'll take some tomorrow and post some inside and outside pics.

                Comment


                  #9
                  Going today to try to get title and registration done. The title was signed over to my friends in 2006 and they never transferred. Hopefully this doesn't become impossible to get accomplished.

                  Comment


                    #10
                    Lance?

                    Comment


                      #11
                      Who is Lance?

                      Comment


                        #12
                        nice thread keep us posted by the way i didnt see did you get the job?

                        Comment


                          #13
                          Originally posted by Dallascowboys View Post
                          nice thread keep us posted by the way i didnt see did you get the job?
                          Yes sir I was offered a job and accepted. I'm starting on Monday so I have to get this RV ready so I don't have to throw money towards a motel room.
                          Last edited by bowsticker; 02-19-2013, 10:05 AM.

                          Comment


                            #14
                            Registration complete! One step closer....

                            Comment


                              #15
                              Complete registration so now I'm one step closer!

                              Click image for larger version

Name:	ImageUploadedByTapatalk 21361295428.288550.jpg
Views:	1
Size:	60.1 KB
ID:	24171800
                              Last edited by bowsticker; 02-19-2013, 12:16 PM.
