Need clamp help

[pure lefty]

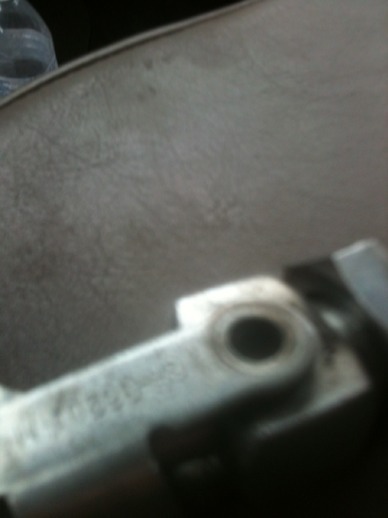

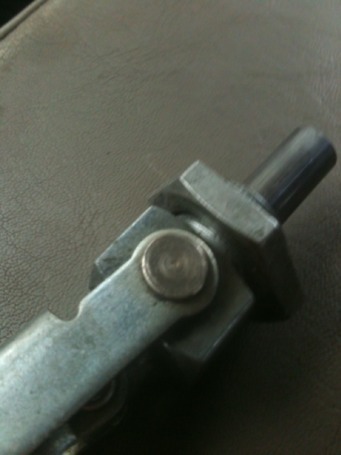

I have a clamp for use with golf shafts, the pin or rivet on one side broke,I don't have a way to repair it as there is only a small space on the inside, to small for a nut. The first picture is one without rivet, second picture is of other side that has rivet. If anybody knows green screen does, please help. Thanks

[pure lefty]

Ttt

[dropem]

Can you take the other side out and put a nut and bolt in it?

[mpotts]

Can you take the other side out and put a nut and bolt in it?

^^^^^^^
sounds good NEXT!!!!!

[cvanbrunt]

I'd drill out the other side as mentioned above and put a bolt all the way through it and a nut on the back side. You could also use a nyloc nut if you need it to hold but stay loose so that it can pivot.

[pure lefty]

Should have explained it better, there is a pin/rivet on each side, so I can't drill thru. Main part of Clamp going up and down is center shafted with pivot arm on each side.

[westtexducks]

Can you not get another pop rivet and a rivet gun and just replace it?

[pure lefty]

May try that but the ones in their are steel, thanks for tip.

[pure lefty]

Ttt

[pure lefty]

Ttt

[hot_rod_eddie]

Two suggestions based on what I think is the issue. Can you make an interference fit pin with a head and press it into where the previous pin went? Second, maybe you could just tap that hole and put in a stud/washer/nyloc nut.
Good luck.
